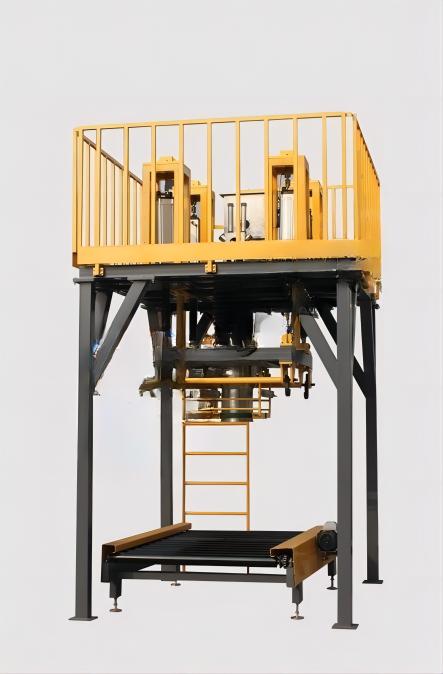

The equipment is mainly developed and designed for the requirements of high dust and high-precision packaging, and is suitable for large bag packaging.
The filling process adopts the form of large and small twin-screw to ensure the speed and accuracy.
The integral bag clamping and conveying mechanism are equipped with a weighing sensor, which can be filled according to the preset weight.
Because of its simple material pipe structure, the equipment is very suitable for the use of materials that often need to be cleaned or replaced.
Specification
| Model | BJ-06 |
| Measurement method | weighing type |
| Feeding mode | twin-screw feeding |
| Filling weight | 100-1000Kg |
| Filling accuracy | <10.2% |
| Filling speed | 6-10bao/h |
| Suitable container | ton bag |
| Power supply | three-phase 380V/220V 50-60HZ |
| Complete machine power | 7KW (including dedusting and 1st stage conveying) |
| Air pressure | 0.4-0.8Mpa |
| Air consumption | 1m ³/ h |
| Operating Weight | 2000kg |
| Overall volume | 3005mm front X2500mm side X3640mm height, including two section conveying length |
