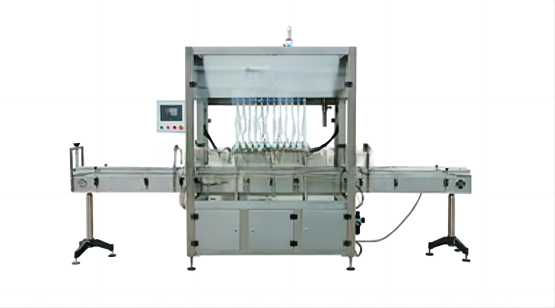

This machine adopts double row filling. The original two in one curved conveying is changed into double row straight conveying for bottle input and double row parallel conveying for bottle output, which greatly saves the floor space and costs.
Specification
| Number of filling heads | 24 (28 or 32 filling heads can also be selected) |
| Filling capacity | 40ml-1000ml |
| Applicable bottle diameter | Ф 40mm- Ф 100mm |
| Production speed | ≤ 9000 bottles/hour (calculated with 100ml water as medium) |
| Power supply | 220V/380V three-phase four wire |
| Total power | 1 KW |
| Working air pressure | 0.55MPa-0.65MPa |
| Gas consumption | 0.3~0.8m3/min |
| Measurement error | ≤± 1% |
| Overall dimension | 2000mm × 1400mm × 2500mm |
| Machine weight | 600 kg |
