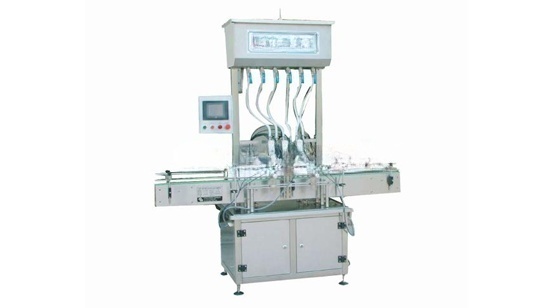

This machine is specially designed for customers with less production. Simple structure and convenient operation. The machine adopts constant pressure fixed flow channel parameters to control the filling time to achieve different metering filling.
Specification
| Number of filling heads | 6 (4, 8, 10, 12 and 16 filling heads can also be customized as required) |
| Filling capacity | 40ml-10a00ml |
| Applicable bottle diameter | Ф 40mm- Ф 100mm |
| Production speed | ≤ 2500 bottles/hour (calculated with 250ml water as medium) |
| Power supply | 220V/380V three-phase four wire |
| Total power | 1KW |
| Working air pressure | 0.55MPa-0.65MPa |
| Gas consumption | 0.3~0.8m3/min |
| Measurement error | ≤± 1% |
| Overall dimension | 2000mm × 800mm × 2200mm |
| Machine weight | 300 kg |
