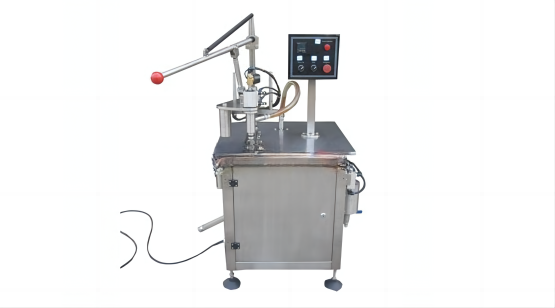

This machine is specially designed for bag in box filling. It is different from other small filling machines. The infusion mode is pumping, without the pressure drop provided by the high-level tank.
Specification
| Number of filling heads | 1 head |
| Filling capacity | 1L~30L |
| Production speed | 60 bags/hour (calculated with 2L water as medium, related to artificial speed) |
| Power supply | 220V/380V three-phase four wire |
| Total powe | 1KW |
| Working air pressure | 0.4MPa-0.6MPa |
| Gas consumption | 0.2m3/min |
| Measurement error | ≤± 3 ‰ |
| Boundary dimension | 700mm × 600mm × 1500mm |
| Machine weight | 150 kg |
