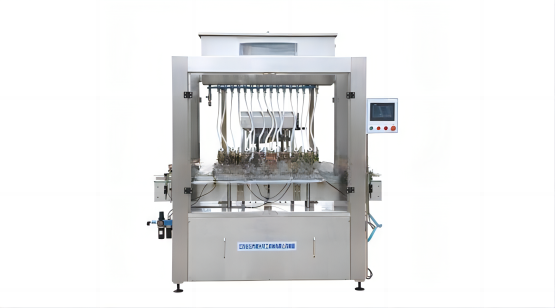

This machine is a modified product based on CDP-6 in-line filling machine. It has the advantages of high production efficiency, accurate measurement, advanced structure, no leakage in filling, simple operation, etc.
Specification
| Number of filling heads | 16 (4, 6, 8, 10 and 12 filling heads are also available) |
| Filling capacity | 40ml-1000ml |
| Applicable bottle diameter | Ф 40mm- Ф 100mm |
| Production speed | ≤ 6000 bottles/hour (calculated with 250ml water as medium) |
| Power supply | 220V/380V three-phase four wire |
| Total power | 1KW |
| Working air pressure | 0.55Mpa-0.65Mpa |
| Gas consumption | 0.3~0.8m3/min |
| Measurement error | ≤± 1% |
| Overall dimension | 2000mm × 900mm × 2500mm |
| Machine weight | 500 kg |
