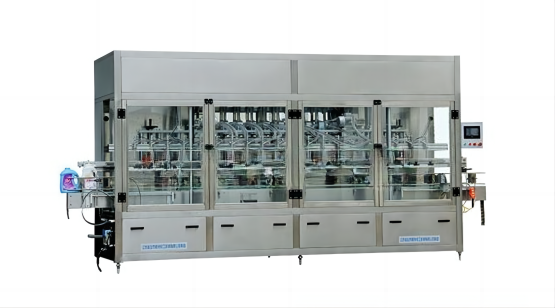

This machine adopts the filling method of piston injection driven by servo ball screw system. It is suitable for liquid filling in chemical, daily chemical, food, medicine and other industries, especially for high viscosity materials.
Specification
| Number of filling heads | 20 (customized according to customer production requirements) |
| Applicable bottle shape | different bottle shapes of 400ml-2000ml (one-time filling) |
| Production capacity | ≤ 4000 bottles/hour (calculated with 1000ml water as the medium) |
| Power supply | AC220V |
| Total power | 5KW |
| Working pressure | 0.5MPa ～ 0.7MPa |
| Gas consumption | 0.6 ～ 0.9 m3/min |
| Measurement error | ≤± 3 ‰ |
| Boundary dimension | 4000mm × 1400mm × 2500mm |
| Machine weight | 1200 kg |
