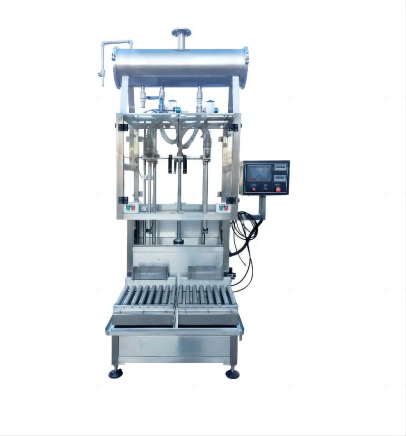

This machine adopts a semi-automatic filling machine with PLC control system and weighing feedback system. The filling parameters can be set by clicking on the touch screen. It has stable operation, reliable performance and strong adaptability.
Specification
| Number of filling heads | 2 |
| Filling capacity | 5L~25L |
| Vessel Z small diameter | Φ 50mm |
| Production speed | ≤ 240 barrels/hour (calculated with 5L water as medium) |
| Power supply | 220V/380V three-phase four wire |
| Total power | 0.4KW |
Working air pressure | 0.55MPa-0.65MPa |
| Gas consumption | 0.3 m3/min |
| Measurement error | ≤± 3 ‰ |
| Overall dimension | 900mm × 890mm × 2000mm |
| Machine weight | 400 kg |
