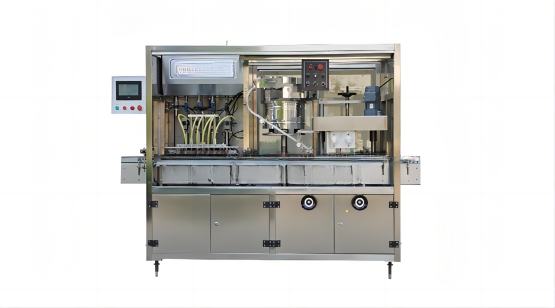

This equipment is a fully automatic packaging machine integrating filling, capping and capping. It is mainly used for filling water and cream products with different viscosities, and can be applied to various types of containers.
Specification
| Applicable bottle shape | round and square bottle |
| Filling range | 20ml-150ml |
Production speed | ≤ 5500 bottles/hour (calculated by filling 20ml water with 8 heads) |
| Power supply | 220V/380V three-phase four wire |
| Total power | 3KW |
| Working air pressure | 0.6MPa |
Gas consumption | 0.6 ～ 0.9 m3/min |
| Measurement error | ≤± 1% |
| Boundary dimension | 2440mm × 1100mm × 1800mm |
| Machine weight | 500 kg |
