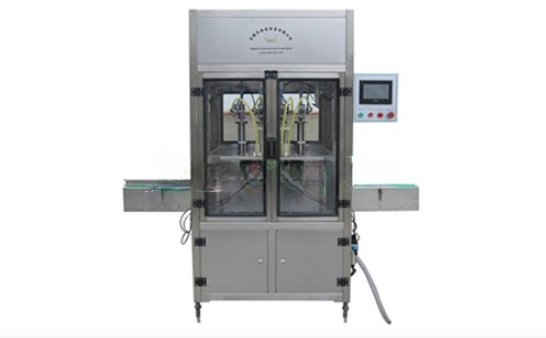

This machine is used for filling normal fluid and special liquid with different viscosity, and is suitable for bottle bodies of different shapes. It is widely used in chemical, food, medical and oil packaging operations
Specification
| Number of filling heads | 6 |
| Filling capacity | 20ml-200ml |
Production capacity | 1000-3500 bottles/hour (calculated with 100ml water as medium) |
| Power supply | 220V/380V three-phase four wire |
| Total power | 2KW |
| Working air pressure | 0.6MPa |
Gas consumption | 0.6 ～ 0.9m3/min |
| Measurement error | ≤± 1% |
| Boundary dimension | 2440mm × 1100mm × 1800mm |
| Machine weight | 250kg |
