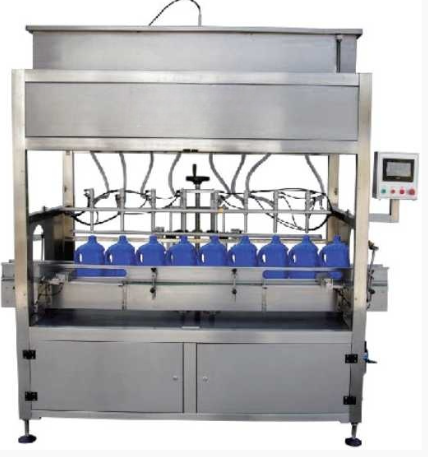

This machine is specially designed for customers who fill large quantities of materials. It is a very simple filling machine. It is characterized by stable operation, reliable performance, high production efficiency, strong adaptability, etc
Specification
| Number of filling heads | 8 (4, 6, 10, 12 and 16 filling heads are also available) |
| Filling capacity | 1000ml-5000ml |
Applicable bottle diameter | Ф 60mm- Ф 130mm |
| Production speed | ≤ 2500 bottles/hour (calculated with 1000ml water as medium) |
| Power supply | 220V/380V three-phase four wire |
| Total power | 1KW |
Working air pressure | 0.55MPa-0.65MPa |
| Gas consumption | 0.3~0.8m3/min |
| Measurement error | ≤± 1% |
| Overall dimension | 2000mm × 900mm × 2200mm |
| Machine weight | 250 kg |
