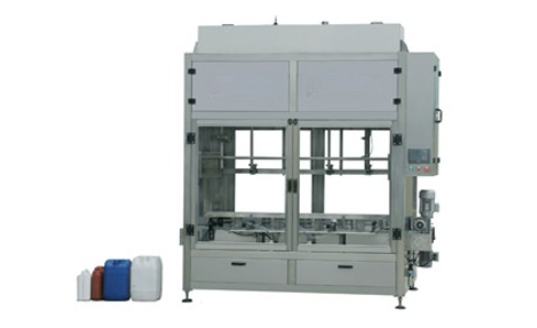

This machine adopts the combination of PLC control system and weighing feedback system to fix the flow channel parameters, and adopts flow control to achieve different metering and filling.
Specification
| Number of filling heads | 8 (4 filling heads are also optional) |
| Filling capacity | 5L~30L |
Applicable barrel length | 180mm~300mm |
| Applicable barrel width | 120mm~250mm |
| Applicable barrel height | 280mm~450mm |
| Production speed | ≤ 220 barrels/hour (calculated with 25L water as medium) |
Power supply | 220V/380V three-phase four wire |
| Total power | 4KW |
| Working air pressure | 0.55Mpa-0.65Mpa |
| Gas consumption | 0.6 ～ 0.9m3/min |
| Measurement error | ≤± 3 ‰ |
| Boundary dimension | 2500mm × 2450mm × 2500mm |
| Machine weight | 800 kg |
