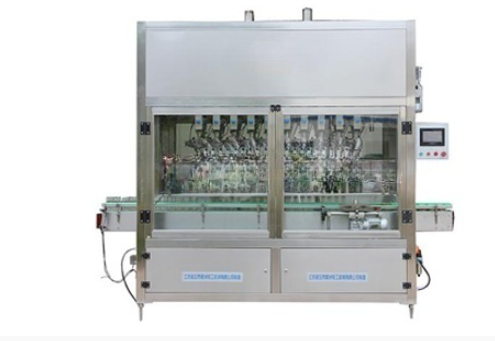

This machine is improved on the basis of the commonly used full-automatic servo piston filling machine, and an agitator is added to the material box to increase the fluidity of materials.
Specification
| Number of filling heads | 20 |
| Filling capacity | 50ml-500ml |
Applicable bottle diameter | Φ 50mm- Φ 100mm |
| Production capacity | ≤ 8000 bottles/hour (calculated with 200ml water as medium) |
| Power supply | 220V/380V three-phase four wire |
| Total power | 2KW |
Working air pressure | 0.6 MPa - 0.7 MPa |
| Gas consumption | 0.6 ～ 0.9m3/min |
| Measurement error | ≤± 1% |
| Overall dimension | 3000mm × 1240mm × 2600mm |
| Machine weight | 800kg |
