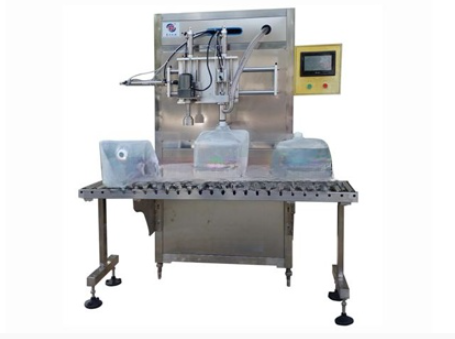

This machine is controlled by a flow meter. The material is pumped into the material pipe by a liquid pump and then filled through the filling head. At the same time, this machine is equipped with the function of capping and screwing. It is an alternative equipment for manual operation.
Specification
| Number of filling heads | 1head |
| Filling range | 1L~50L |
Filling and capping speed | about 60 bags/hour (calculated by filling 5L water as the medium, related to the manual placing speed) |
| Applicable bag diameter | customized |
| Measurement error | ≤± 3 ‰ |
| Working pressure | 0.6Mpa |
Boundary dimension | 1500mm × 800mm × 1200mm |
| Machine weight | 300kg |
