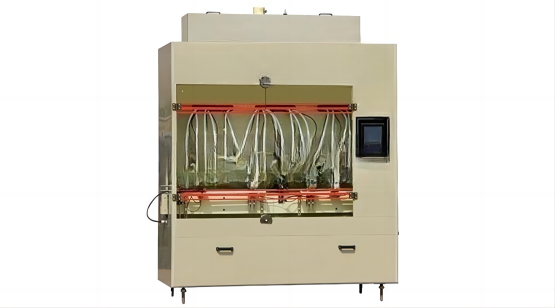

This machine is specially designed for the filling of highly corrosive liquids. All parts in contact with liquids are made of anti-corrosion materials. The number of filling heads of this machine is 8-20, which can be selected by the customer according to the production volume
Specification
| Number of filling heads | 8 heads - 20 heads |
| Filling capacity | 40ml-1000ml |
Applicable bottle diameter | Ф 40mm- Ф 100mm |
| Production speed | ≤ 2500 bottles/hour (calculated with 250ml water as medium) |
| Power supply | 220V/380V |
| Total power | 1KW |
| Working air pressure | 0.55MPa-0.65MPa |
| Air consumption | 0.3-0.8m3/min |
| Measurement error | ≤± 1% |
| Overall dimension | 2000mm × 900mm × 2200mm |
| Machine weight | 300 kg |
