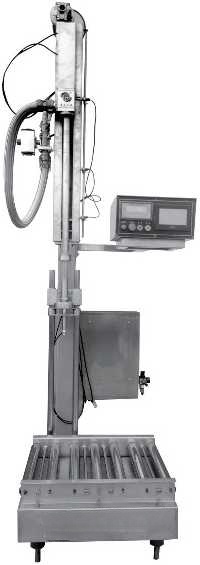

This machine is designed for large dosage filling. Z is an accurate and ideal weighing and filling equipment. The intelligent weighing feedback system makes the operation without manual debugging and the filling dosage more accurate.
Specification
| Number of filling heads | 1 head (2 filling heads are also optional) |
| Filling capacity | 20L~250L |
Applicable barrel diameter | ≤ Ф 600mm different barrel shapes |
| Production speed | ≤ 30 barrels/hour (calculated with 250L water as the medium) |
| Power supply | 220V/380V three-phase four wire |
| Total power | 0.5KW |
| Working air pressure | 0.55MPa-0.65MPa |
| Gas consumption | 0.3m3/min |
| Raceway height from the ground | 360mm-380mm |
| Feeding requirements | the feeding inlet of the high level tank shall not be lower than 4m above the ground (it can also be equipped with a circulating pump for pumping) |
| Measurement error | ≤± 0.5 ‰ |
| Overall dimension | 900mm × 1200mm × 2900mm |
| Machine weight | 300 kg |
