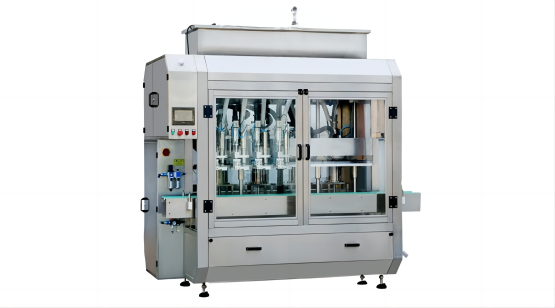

This machine can be used for filling paste and liquid. It uses a servo motor to drive the piston and cooperate with the three-way valve of the corner seat to extract and eject materials. It also controls the filling stroke and the filling volume by adjusting the pulse signal of the servo motor.
Specification
| Number of filling heads | 4 |
| Filling capacity | 500ml-5000ml |
Production speed | ≤ 3500 bottles/hour (filling capacity 2000ml, water as medium) |
| Power supply | 220V, single-phase, 50Hz |
| Total power | 8KW |
Measurement error | ≤± 0.5% (<1000ml),≤±3‰（≥1000ml） |
| Boundary dimension | 2200mm × 1300mm × 2200mm |
