PRODUCT DESCRIPTION:

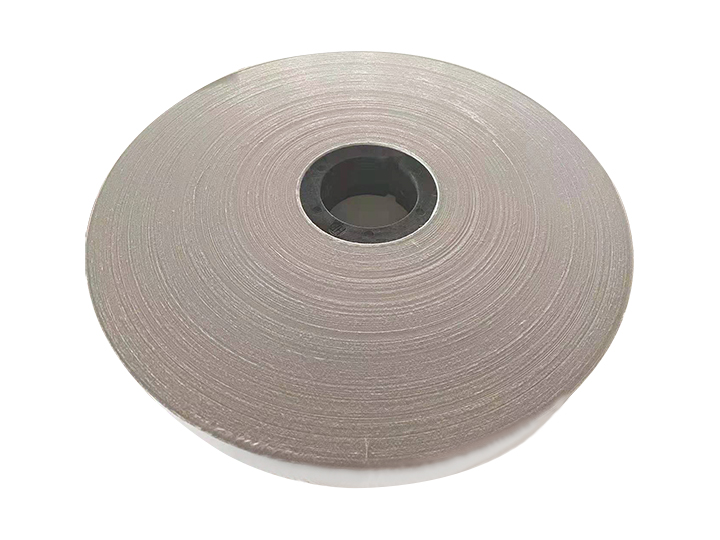

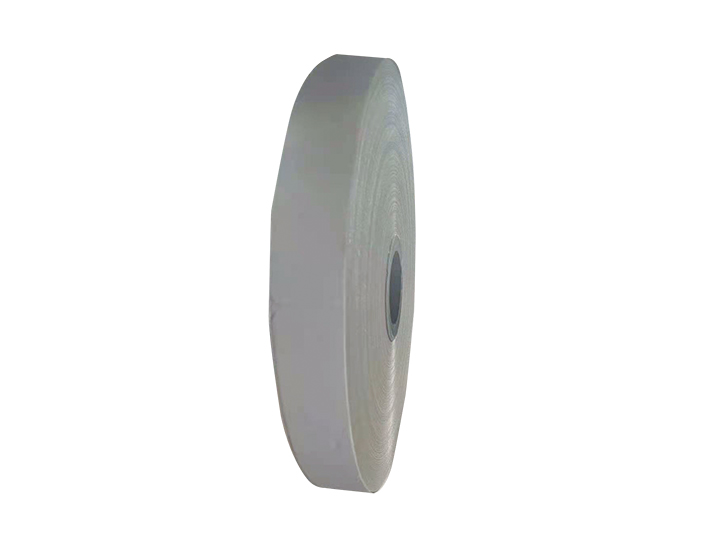

It is made of glass fiber cloth and low smoke zero halogen flame retardant materials.
APPLICATION MODE:
Commonly known as glass fiber cloth coated tape, it is mainly used for various smoke-free, low
smoke, clean high flame retardant cables, fire-resistant cables, etc.
ELECTRICAL CHARACTERISTICS:
The specific gravity is about 40% lighter than the embossed non-woven fabric, the cost is lower, the
thickness is thinner, the softness is good, and the temperature resistance is up to 280 ° C.
Specification
| batch | 1 volume | Supplier/Origin | Yixing Huafei | ||
| Inspection order number | / | Production batch number/date | HF20210828-60 | ||
| Sampling Number/Incoming Material Number | 1/1 | Incoming date | 2021.8.28 | ||
| Test standard (basis): JB/T10259-2014 flame retardant tape for electric and optical cables | |||||
| Test items | Standards and Indicators | test result | |||
| Exterior | Flat appearance, double-sided dipping, no shedding, no stains | qualified | |||
| Width (mm) | ±0.3 | 60 | |||
| Thickness (mm) | 0.2±0.02 | 0.2 | |||
| Breaking strength (N/25mm) | ≥200 | 225 | |||
| Weight (g/m 2 ) | 200±20 | 200 | |||
| Oxygen Index(%) | ≥70 | 85 | |||
| Moisture content (%) | ≤1 | 0.5 | |||

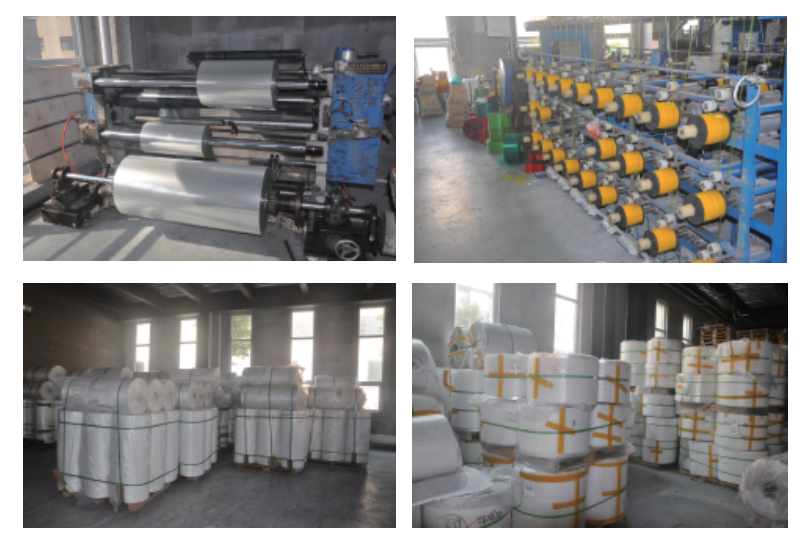

Production
