Serices of products

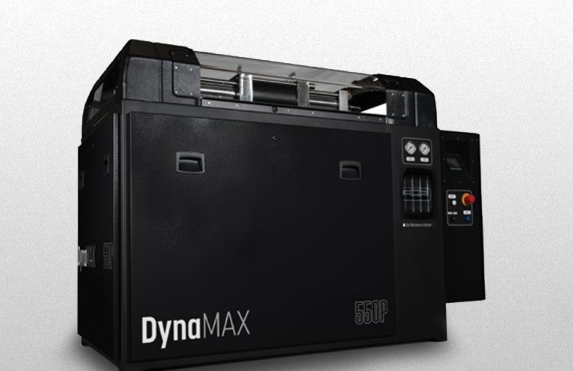

| Pump Model | DaMAX550P | DmMAX560P | DmMX575P | |||||
|---|---|---|---|---|---|---|---|---|
| Hz | 50 | 60 | 50 | 60 | 50 | 60 | ||
| Basic Information | Maximum output: pm | 3.79 | 4.54 | 568 | ||||
| Maximum orifice: mm | 0.35 | 0.40 | 0.43 | |||||
| Output pressure | Adjustable up to 4100 bar | |||||||
| Pressure control | Closed loop proportional pressure control - standard | |||||||
| Drain valve | pneumatic | |||||||
| Pump power | Motor power: WW | 37 | 44.7 | 56 | ||||
| Voltage | 400 | 208～230 | 460 | 400 | 450 | 400 | 460 | |
| Full load current | 738 | 1382～125.8 | 629 | 907 | 74.4 | 1103 | 896 | |
| Main circuit breaker (A | 80 | 150 | 80 | 100 | 100 | 125 | 100 | |
| Motor starter (if more than one is listed, select one) | Soft Start | |||||||
| Sesl MhintirancIechndooy Seal Management and Maintenance Technology | Standard | |||||||
| Special Features | Closed loop proportional pressure control | Standard | ||||||
| Physical parameters | width | 1016 mm | ||||||
| length | 995mm | |||||||
| high | 1509 mm | |||||||
| Operating weight (kg | 1300 | 1450 | 1500 | |||||
| Appendix | Hood | Cover with observation window | ||||||
| Booster pump | Included | |||||||
| External air cooling and oil cooling | Optional | |||||||
| Electronic interlocking device | Optional | |||||||
| Condenser for cooling oil | Optional | |||||||
| Model | DynaMAX™ 5100 | DynaMAX™ 5150 | |||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| Comprehensive indicators | Maximum output flow | 7.95 lpm | 8.33 lpm | 11.36 lpm | 12.11 bm |
| Maximum nozzle | 0.508 mm | 0.533mm | 0.610 mm | 0.635mm | |
| Continuous output pressure | Adjustable to 60,000 psi (4137 bar) | ||||
| Supercharger Configuration | Dual superchargers | ||||
| Pressure control | Electro-hydraulic proportional control | ||||
| Drain valve | Hydraulic trigger | ||||
| Pump power | Motor power | 74.6 WW | 111.9kW | ||
| Voltage | 400V | 460V | 400V | 460 V | |
| Full load current | 138.8A | 117.5 A | 204 A | 173.4 A | |
| Main circuit breaker | 150A | 225 A | |||
| Soft Start | True soft start | ||||
| Physical parameters | Overall width | 1143 mm | 1397 mm | ||
| Overall length | 2184mm | 2057mm | |||
| Overall height | 1422 mm | 1422 mm | |||
| Approximate operating weight | 1882kg | 2767 kg | |||
| Options | External air-to-oil cooling | Optional | Optional | ||
| Oil cooler, used to cool the oil | Optional | Optional | |||
| Water shut-off valve | Optional | Standard | |||
