Product characteristics

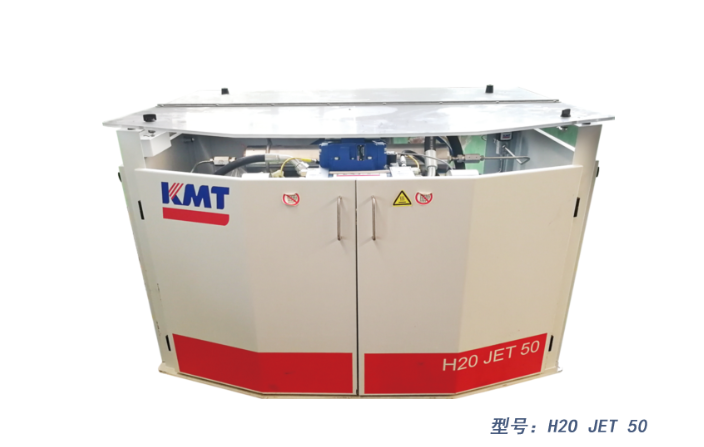

KMT H2O JET50 high pressure pump
New options for low cost, high efficiency water cutting applications. Adhering to the new style, simple design, simple control, easy to use, to provide customers with lasting and stable performance.
Technical parameter
| Product Model | H20 JET50/50HP(37KW) |
| Maximum continuous pressure | 60000psi(4137bar) |
| Maximum flow | 3.8Ipm |
| Maximum single nozzle diameter | 0.36mm |
| Control voltage and current | 24V DC,10Amps DC |
| Ambient temperature | 5~40℃ |
| Hydraulic oil tank capacity | 114L |
| Cooling water volume | 11.4Ipm |
| Accumulator capacity | 1L |
| Length, width and height | 1473*1205*1056(mm) |
| weight | 1025kg |
Product characteristics

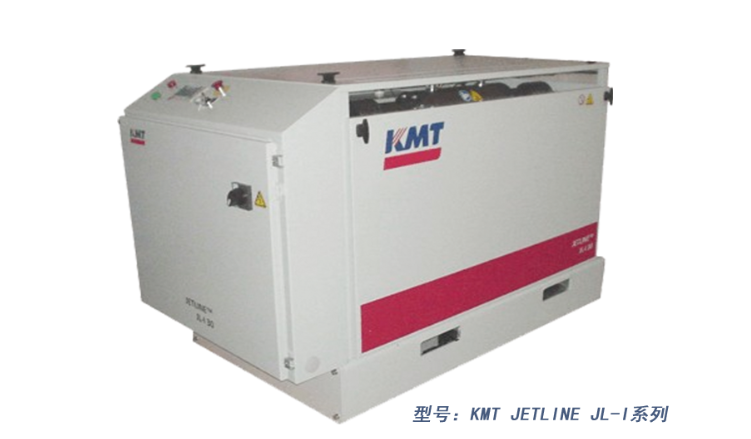

KMT JETLINE JL-I high pressure pump series
It combines all the advantages of KMT water jet systems for cutting applications. Specially developed to cater to the Asian market, it can meet the market's expectations for cost-effective water jet cutting.
Technical parameter
| Product Model | 50HP(22KW) 50HP(37KW) |
| Maximum continuous pressure | 55000psi(3800bar) 55000psi(3800bar) |
| Maximum flow | 2.3Ipm 3.8Ipm |
| Maximum single nozzle diameter | 0.28mm 0.35mm |
| Control voltage and current | 24V DC,10Amps DC 24V DC,10Amps DC |
| Ambient temperature | 5~40℃ 5~40℃ |
| Hydraulic oil tank capacity | 114L 170L |
| Cooling water volume | 5.7Ipm 5.7Ipm |
| Accumulator capacity | 1L 1L |
| Length, width and height | 1935*914*1194(mm) 1935*914*1194(mm) |
| weight | 1180kg 1180kg |
Product characteristics

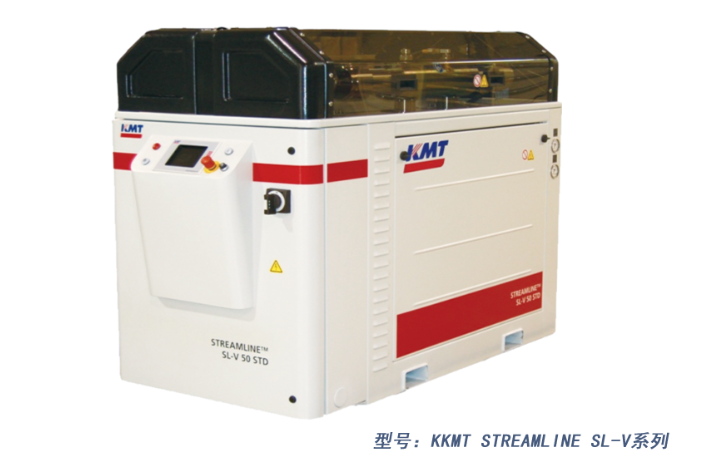

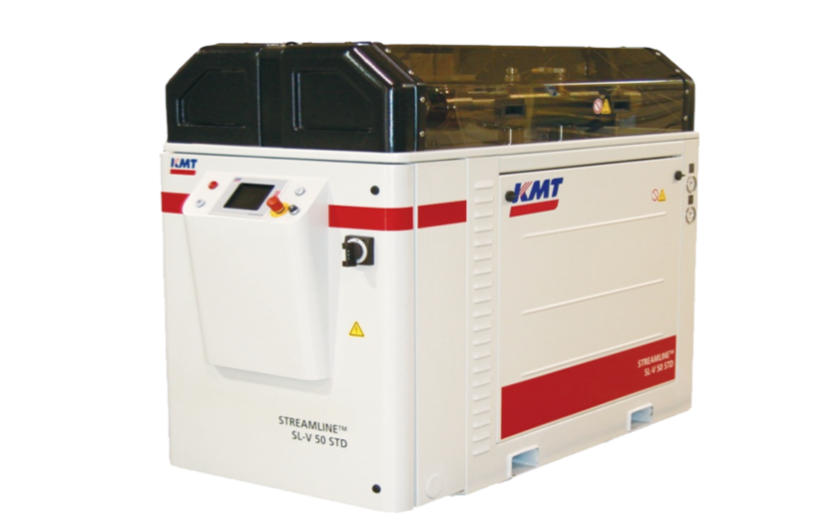

KMT STREAMLINE SL-V high pressure pump series
It uses the latest technology, is easy to use, and has a reliable and convenient innovative design. The products bring the highest cutting efficiency, which can create rich profits for enterprises.
Technical parameter
| Product Model | 50HP(37KW) 100HP(75KW) |
| Maximum continuous pressure | 60000psi(4137bar) 60000psi(4137bar) |
| Maximum flow | 3.79Ipm 7.57Ipm |
| Maximum single nozzle diameter | 0.355mm 0.508mm |
| Control voltage and current | 24V DC,10Amps DC 24V DC,10Amps DC |
| Ambient temperature | 5~40℃ 5~40℃ |
| Hydraulic oil tank capacity | 106L 182L |
| Cooling water volume | 11.4Ipm 17.0lpm |
| Accumulator capacity | 0.96L 1.92L |
| Length, width and height | 1700*914*1453(mm) 2000*914*1453(mm) |
| weight | 1315kg 1905kg |
