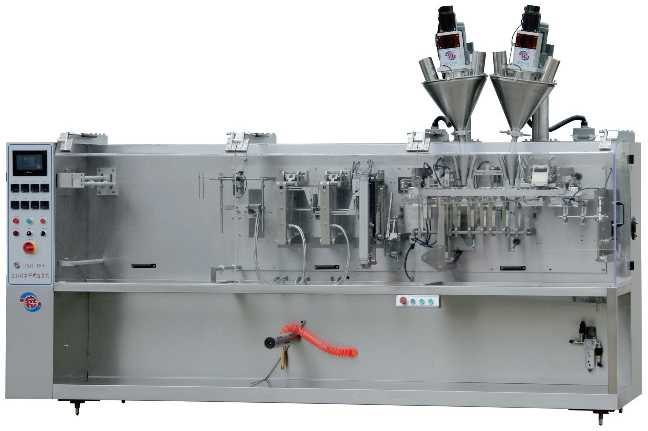

This machine is a new generation of large dosage bag packaging equipment developed on the basis of absorbing the experience of bag packaging machines at home and abroad. The machine adopts PLC programmable control system and touch screen operating system, realizing the functions of film roll → bag forming → bag making → filling → sealing → finished product transportation.
Specification
| Packing bag specification | 85-180mm (width) × 100-220mm ( single bag) |
| 65-90mm wide × 100-220mm high ( Double bag) | |
| Production speed | 40-60 bags/minute ( single bag) |
| 80-120 bags/minute ( Double bag) | |
| Package range of powder | 5g-300g (different according to the specific gravity of materials) |
| Package range of water agent | 5 ml - 120ml (different according to the specific gravity of materials) |
| Power supply | 220V/380V |
| Total power | 5KW |
| Measurement error | ≤± 1% |
| Roll film diameter | ≤ Ф 500mm |
| Working air pressure | 0.6MPa |
| Gas consumption | 0.6~0.9m3/min |
| Boundary dimension | 3260mm × 1020mm × 2390mm |
| Machine weight | 1050 kg |
