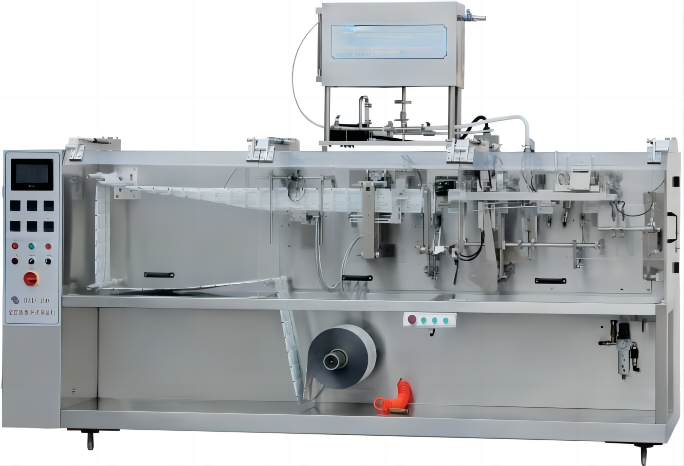

This machine is a modified product on the basis of DXD-110 horizontal full-automatic packaging machine, which increases the packaging dosage and can realize the filling conversion of powder, granule, water and paste; Three or four edge sealing can be realized as required.
Specification
| Packaging bag width | 60mm – 145mm |
| Packaging bag height | 70mm – 220mm |
| Powder packaging range | 5g - 100g (different according to the specific gravity of materials) |
| Packaging range of water agent | 5ml-120ml (depending on the specific gravity of the material) |
| Power supply | 220V/380V |
| Total power | 3.5KW |
| Measurement error | ≤± 1% |
| Production speed | 40~60 bags/minute |
| Roll film diameter | ≤ Ф 500mm |
| Working air pressure | 0.6MPa |
| Gas consumption | 0.6~0.9m3/min |
| Overall dimension: 2850mm | 2850mm × 1050mm × 2260mm |
| Machine weight | 900 kg |
