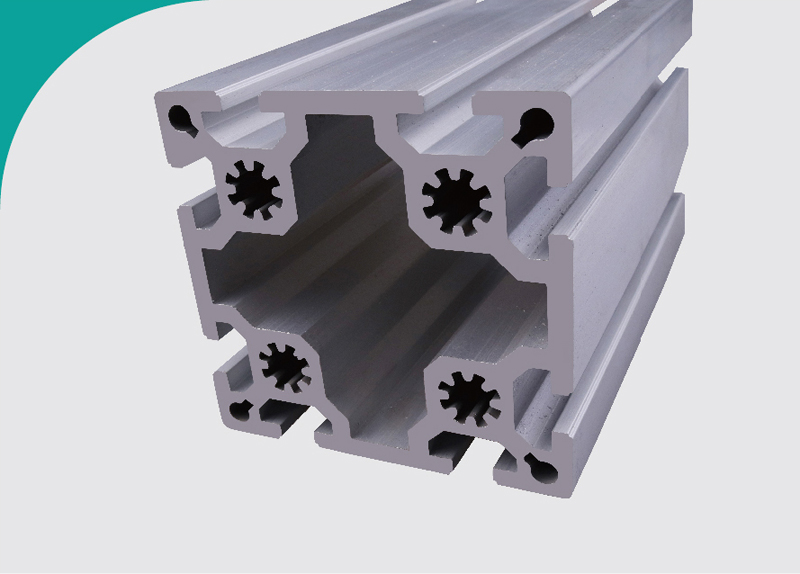

The 10mm wide industrial aluminum profiles are widely used in the frame combination of heavy load structures with high stress, high strength and high support requirements.
Specification
| Profile | 100x100 |
| Material | Aluminiu (6063-T5) |
| Unit weight | 11.5m/kg |
| Length | 6.01m |
| Collective inertia | lx: 191.25cm4 ly: 191.25cm4 |
| Section inertia | Zx: 42.50cm³ Zy: 42.50cm³ |
Production

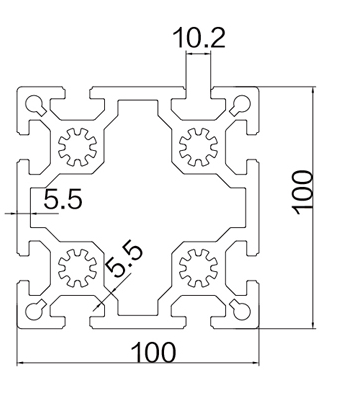

Diagram
