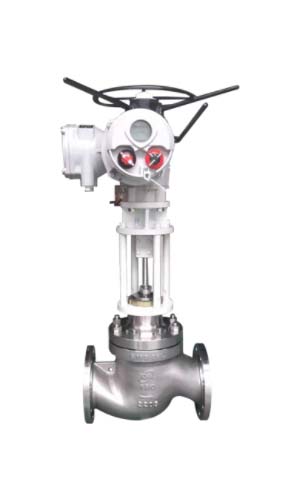

Single-seat control valves are small, simple in structure and widely used. They can work in non-cavitation liquid conditions, steam and gas conditions in which the noise is in the specified range.
Specification
| Model | G101 / G102 / G103 / G104 / G105 / G106 |
| Body Size | 1/2＂~8＂（15A~200A） |
| Body Rating | ANSI Class 150~600#; PN1.0MPa~PN10.0MPa |
| Fluid Temp. | -196℃~538℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | •Flanged(RF、FM、RTJ) •Weld ends(SW:50A and under; BW:80Aand over) |
| Plug Form | •P-port single seated •Q-port single seated |
| Characteristic | •Equal percentage• Linear •On-off |
| Body Materials | WCB、LCB、WC6、WC9、CF8、CF8M、CF3M And Other Alloy Steels |
| Leakage | •Metal Seat: ANSI Class Ⅳ、Ⅴ •Soft Seat: ANSI Class Ⅵ |
| Actuator | •Pneumatic Diaphragm Actuator •Pneumatic Cylinder Actuator •Solid Atate Electronic Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
