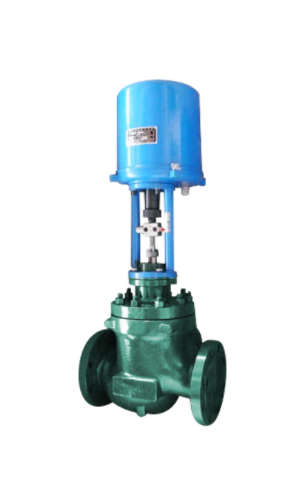

Single seat control valve is a kind of small size, simple structure but can adapt to harsh working conditions of the control valve, the application range is very wide. The single seat regulating valve can be easily made into special structures such as bellows sealing, steam jacket and lengthened upper valve cover.
Specification
| Model | G101 / G102 / G103 / G104 / G105 / G106 |
| Body Size | 1/2＂~8＂（15A~200A） |
| Body Rating | ANSI Class 150~600#; PN1.0MPa~PN10.0MPa |
| Fluid Temp. | -196℃~538℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | •Flanged(RF、FM、RTJ) •Weld ends(SW:50A and under; BW:80Aand over) |
| Plug Form | •P-port single seated •Q-port single seated |
| Characteristic | •Equal percentage• Linear •On-off |
| Body Materials | WCB、LCB、WC6、WC9、CF8、CF8M、CF3M And Other Alloy Steels |
| Leakage | •Metal Seat: ANSI Class Ⅳ、Ⅴ •Soft Seat: ANSI Class Ⅵ |
| Actuator | •Pneumatic Diaphragm Actuator •Pneumatic Cylinder Actuator •Solid Atate Electronic Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
