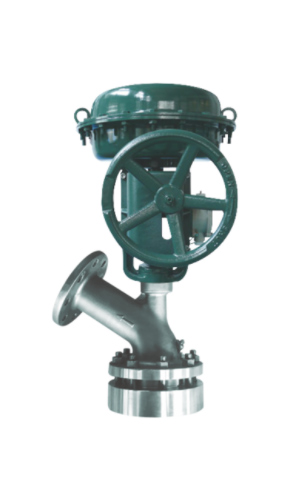

Y100 series bottom discharge valve has the features of low pressure drop,self-clealiness, and no dead space,so it is well suited for the slurry fluids,and handles the high viscosity fluids and so on.
Specification
| Model | Y100 |
| Body Size | 1＂~8＂（25A~200A） |
| Body Rating | ANSI Class 150~900 #; PN1.0MPa~PN15.0MPa |
| Fluid Temp. | -196~538℃ |
| Characteristic | On-off |
| Face to Face Dimension | Reference sample selection |
| Body Connections | •Flanged •Weld ends |
| Body Materials | WCB,304SS,Monel,HB,HC,etc |
| Leakage | ANSI Class Ⅴ~Ⅵ |
| Actuator | •Pneumatic diaphragm actuator •Pneumatic Cylinder Actuator •Solid state electronic actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
