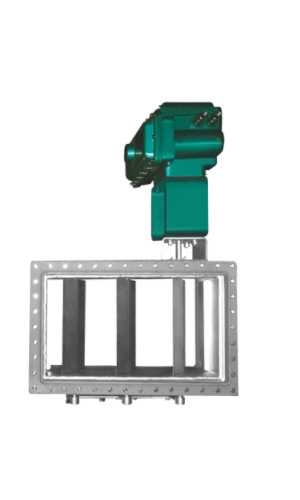

The square valve is welded by high-quality alloy steels. It is compact, light and wear-resistant, with long use life, small flow resistance but large flow section, flexible opening and closing. It is widely used for opening and closing, automatic control or remote control of gas, semi-fluid, gas containing dust and other fluid or mediums in pipelines in the metallurgy, building materials, petrochemical, light industry and other industries.
Specification
| Model | E601 |
| Body Size | Special Design |
| Body Rating | ANSI Class 150#; PN0.25MPa PN0.6MPa |
| Fluid Temp. | -5℃~450℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | Flanged(RF、FF) |
| Body Materials | Q235A 304 316 And Other Alloy Steels |
| Leakage | 1.0%~2.0% |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
