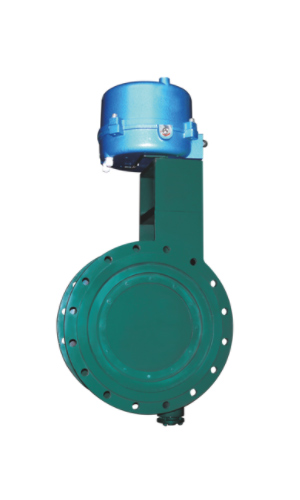

Four-bar linkage structure is used for internal trim parts, so this valve can effectively prevent leakage and with small opening and closing torque in large diameter meta-sealing conditions.
Specification
| Model | E701 |
| Body Size | 12＂~64＂（300A~1600A） |
| Body Rating | PN0.25MPa PN0.6MPa PN1.0MPa |
| Fluid Temp. | -5℃~230℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | Flanged(RF) |
| Body Materials | Q235A 304 316 And Other Alloy Steels |
| Leakage | Soft Seat : ANSI Class Ⅵ |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
