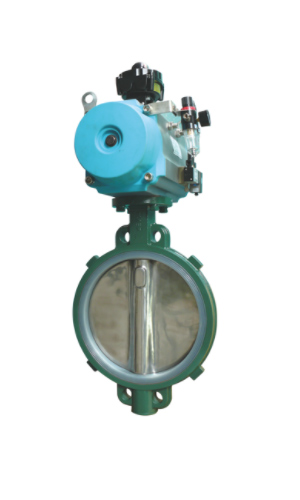

The anti-corrosion butterfly valve is widely used for cut-off and control of fluids in chemical, pharmaceutical, food, papermaking, water treatment and other industries.
Specification
| Model | B401 / B402 / B411/ B412 |
| Body Size | 2＂~24＂（50A~600A） |
| Body Rating | ANSI Class 150#; PN1.0MPa PN1.6MPa |
| Fluid Temp. | -50℃~150℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | Wafer type |
| Body Materials | HT200、QT400、WCB And Other Alloy Steels |
| Leakage | •Soft Seat : ANSI Class Ⅵ |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
