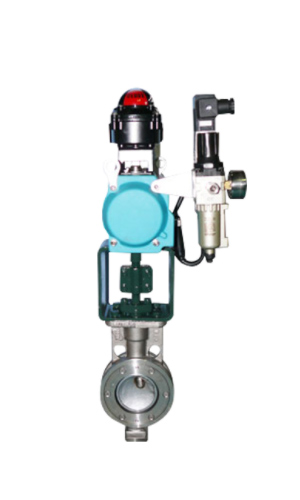

The triple-eccentric butterfly valve adopts unique triple-eccentric structure design, has excellent regulation and cutting performance, and is suitable for various occasions.
Specification
| Model | E301/E302/E303/E304/E311/E312/E313/E314 |
| Body Size | 3＂~24＂（80A~600A） |
| Body Rating | ANSI Class 150~300#; PN1.6MPa~PN5.0MPa |
| Fluid Temp. | -196℃~500℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | •Flanged(RF) •Wafer type |
| Body Materials | WCB、CF8、CF8M、CF3M And Other Alloy Steels |
| Leakage | •Metal Seat: ANSI Class Ⅳ、Ⅴ •Soft Seat : ANSI Class Ⅵ |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
