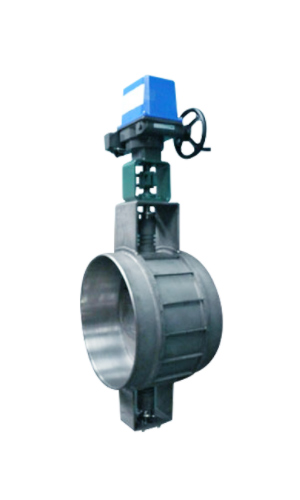

The valve body and valve plate of this series are welded and processed by steel plate. It is a butterfly valve with light weight and simple structure. It is suitable for flow and pressure control of air or other gases under low pressure, and also suitable for gases under high temperature.
Specification
| Model | E501 / E502 |
| Body Size | 3＂~64＂（80A~3000A） |
| Body Rating | ANSI Class 150#; PN0.25MPa PN0.6MPa |
| Fluid Temp. | 5℃~600℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | Flanged(RF、FF) |
| Body Materials | Q235A 304 316 And Other Alloy Steels |
| Leakage | 0.2%~0.5% 1.5%~5% 1.0%~2.0% |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
