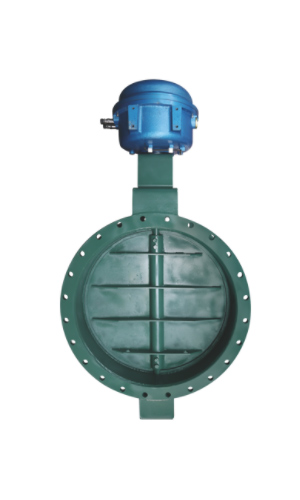

The body and plate of the low-load butterfly valve are made up of steel plates during welding process. It is light and simple in structure. It is suitable for fluid control in low-temperature and high-temperature gas conditions.
Specification
| Model | E501 / E502 |
| Body Size | 3＂~64＂（80A~3000A） |
| Body Rating | ANSI Class 150#; PN0.25MPa PN0.6MPa |
| Fluid Temp. | 5℃~600℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | Flanged(RF、FF) |
| Body Materials | Q235A 304 316 And Other Alloy Steels |
| Leakage | 0.2%~0.5% 1.5%~5% 1.0%~2.0% |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
