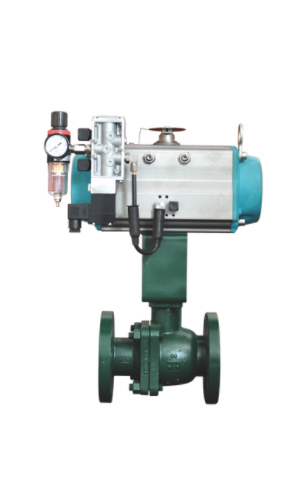

The ball valve has excellent cut-off performance, when fully open, its flow path and pipeline inner diameter are basically the same, fluid pressure loss is very small, so it is most suitable for cut-off control of various liquids, gases, slurries and other fluids.
Specification
| Model | B101 / B102 / B104 |
| Body Size | 3/4＂~12＂（20A~300A） |
| Body Rating | ANSI Class 150~600#; PN1.0MPa~PN10.0MPa |
| Fluid Temp. | -196℃~538℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | •Flanged(RF、FM、RTJ) •Weld ends(BW) |
| Body Materials | WCB、LCB、WC6、WC9、CF8、CF8M、CF3M And Other Alloy Steels |
| Leakage | •Metal Seat: ANSI Class Ⅴ •Soft Seat : ANSI Class Ⅵ |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
