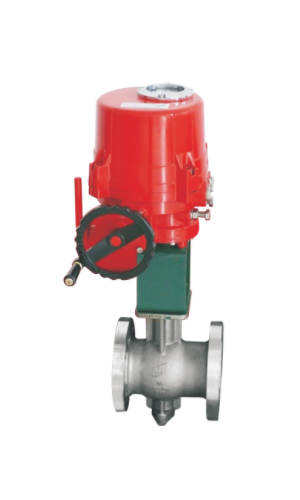

The special design of the V-shape notch on the sphere enables and ensures the product has larger and good adjustable ratio. The shearing action effect is realized between the V notch and valve seat during valve plug movement. In addition to its direct channel structure, this valve is suitable for control of fiber medium, slurry, powder and other fluids, gases and vapors.
Specification
| Model | B201 / B202 / B211 / B212 |
| Body Size | 1＂~12＂（25A~300A） |
| Body Rating | ANSI Class 150~300#; PN1.6MPa~PN4.0MPa （PN5.0MPa） |
| Fluid Temp. | -196℃~538℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | •Flanged(RF、FM) |
| Body Materials | WCB、LCB、WC6、WC9、CF8、CF8M、CF3M And Other Alloy Steels |
| Leakage | •Metal Seat: ANSI Class Ⅳ •Soft Seat : ANSI Class Ⅵ |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
