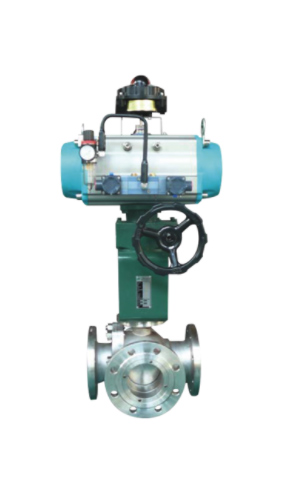

With strong cutout capacity, basically identical flow path and pipeline at full open of the valve and small loss of fluid pressure, the three-way ball valve is applicable to cut out and control varius liquid, gas, pulp and other fluids.
Specification
| Model | B301 / B302 / B303 / B304 |
| Body Size | 1＂~10＂（25A~250A） |
| Body Rating | ANSI Class 150~300#; PN1.6MPa~PN5.0MPa |
| Fluid Temp. | -29℃~250℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | •Flanged(RF、FM) |
| Body Materials | WCB、CF8、CF8M、CF3M And Other Alloy Steels |
| Leakage | •Soft Seat: ANSI Class Ⅵ |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
