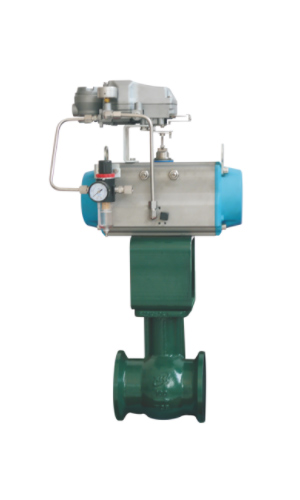

The eccentric ball valve is a kind of eccentric rotary motion valve and its valve plate is partly made up of spherical surface. Compared with common ball valve, the eccentric ball valve is compact and light, with high adjustable ratio and large flow capacity.
Specification
| Model | B401 / B402 / B411/ B412 |
| Body Size | 1＂~12＂（25A~300A） |
| Body Rating | ANSI Class 150~300#; PN1.6MPa~PN5.0MPa |
| Fluid Temp. | -45℃~400℃ |
| Face to Face Dimension | Reference sample selection |
| Body Connections | •Flanged(RF) •Wafer type |
| Body Materials | WCB、LCB、WC6、WC9、CF8、CF8M、CF3M And Other Alloy Steels |
| Leakage | •Metal Seat: ANSI Class Ⅳ •Soft Seat : ANSI Class Ⅵ |
| Actuator | •Pneumatic Cylinder Actuator •Electronic Motor Actuator |
| Painting | Dark Green Epoxy Resin Group is Standard In Case of Stainless Steel Body, No Painting is Standard |
