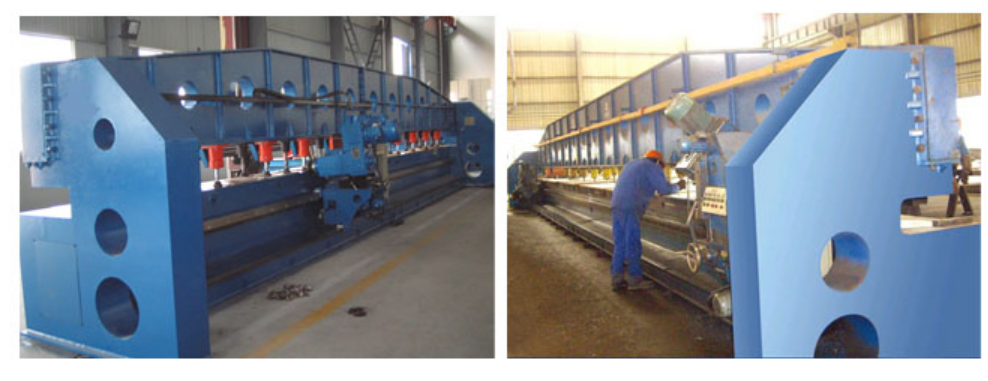

This machine can provide one-time milling and shaping for the beveling of bevel
edge, straight edge, U edge before metal plate welding. Compared with edge
planer, it has low price, high efficiency, low energy cost, and can be operated and
repaired, with a thickness of 6-50mm. It prove to be an ideal option for you.
Specification
| Model | The length of milling(mm) | The thickness of milling(mm) | The speed of milling(m/h) | The power of driving motor(kw) | The power of milling motor(kw) | The power of oil pump milling ,motor(kw) |
| XBJ-4 | 4000 | 6-50 | 18-30 | 1.5 | 5.5 | 5.5 |
| XBJ-6 | 6000 | 6-50 | 18-30 | 1.5 | 5.5 | 5.5 |
| XBJ-9 | 9000 | 6-50 | 18-30 | 1.5 | 5.5 | 5.5 |
| XBJ-12 | 12000 | 6-50 | 18-30 | 1.5 | 5.5 | 5.5 |
