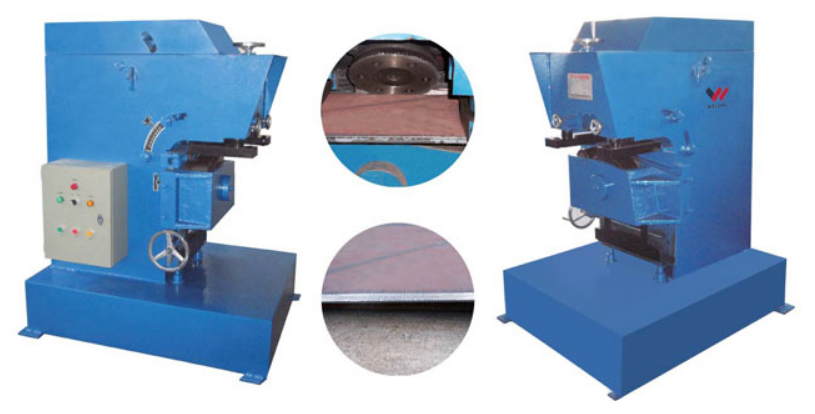

The beveling machine is adopted with the milling principle to mill the angle for the
edge of the steel plate, and to get the groove for welding. The machine is accurate in
size, bright and smooth in surface, and is formed once. There is no need to make
de-burring, it is convenient, very high in working efficiency (3m/min) and low in
energy consumption.
Specification
| Specification | GD-20 | ||
| Sheet tensile strenght(N/mm2) | <400 | >400-500 | >500-600 |
| Tske the sheet for exmaple | A3 sheet | 16Mn sheet | 1Cr18Ni9ri sheet |
| Maxwidth w(mm) | 20 | 16 | 12 |
| Feeding speed v(m/min) | ~2.9 | ~2.9 | ~2.9 |
| Deburring angle(a°) | 25-55 | ||
| Min.verthcal edge e(mm) | 2 | ||
| Max.thickness h(mm) | 20 | ||
| Hob dia.(mm) | 200 | ||
| Main motor type | Y112M-4 4KM/1440r/min | ||
| Size(mm)Length×width×height | 1240×940×1500 | ||
