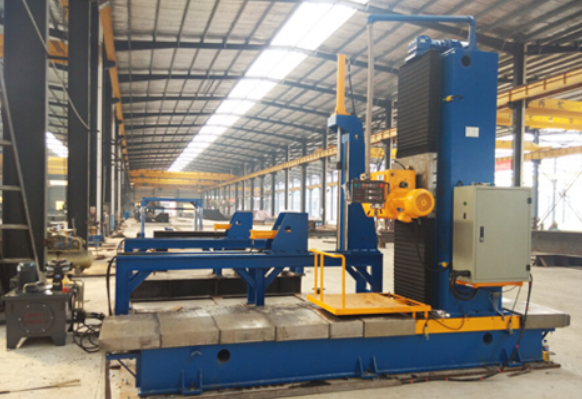

This machine is used to mill the end face of Box- beam and H-beam, and the degree
of milling head can be adjusted manually in vertical direction to bevel the end face.
The hydraulic support rack for choice can fix the beam and is open top, which is
easy for hoisting.
Specification
| Model | DX1215 | DX1520 |
| Section height | 1200mm | 1500mm |
| Section width | 1500mm | 2000mm |
| Milling head power | 5.5KVy | |
| Vertical milling speed | 55~500 mm/min | |
| Horizontal milling speed | 50~440mm/min | |
| Milling angle | 0～45° | |
