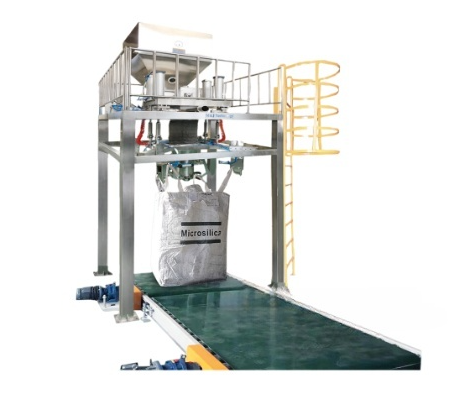

1. Feeding mechanism: two sizes of gate valves are used to control coarse, slow and fine feeding.
2. Weighing frame: the weighing frame is connected with the sensor, which transmits the weight signal of the material to the electrical box, which controls the operation of the whole machine.
3. The electric trolley is driven by the motor to run back and forth on the track to transport finished products. The start and stop of the trolley are manually operated, and the final stop position is determined by two limit switches.
4. Electric box: external signals and sensor signals are transmitted to the electric box, which controls the start and stop of feeding through the programmed program; Lifting and lowering of cylinder; Operation of conveying trolley.
Specification
| Model | BD-J100 |
| Packaging form | Ton bag type |
| Feeding range | 500-1200kg |
| Packaging speed | 4-6 t/h |
| Packaging accuracy | Static accuracy 0.1% FA.OIML Class III,Dynamic accuracy 0.3% |
| Air source | 0.4 ～ 0.6MPa, consumption 2M3/h |
| Power Supply | AC380V |
| Total power | 2.5kw |
| Overall dimensions(L * W * H) | 5200x1800x3500 |
