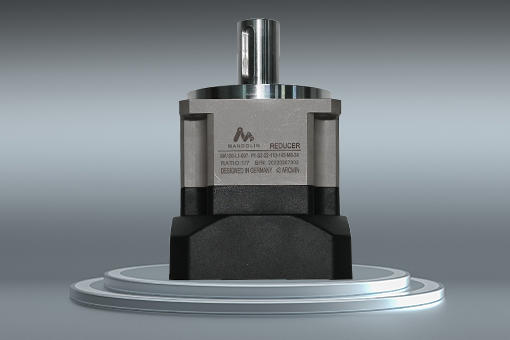

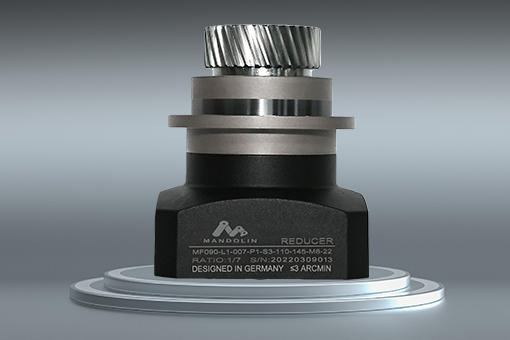

Japanese precision hobbing machine superhard processing;
Good running precision and good stability;
High efficiency, high input speed, high output torque;
Quiet, lightweight/small;
High rigidity, high precision, long life;
Freedom to install;
Input/output shaft integrated structure;
It can be applied to printing machines, laser cutting machines, CNC machine tools, lithium batteries, spring machinery, packaging machines, warp knitting machines, injection molding machines and other products.
Specification
| Reduction Ratio(i) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 14 | 20 |
| Rated Output Torque T2n (Nm) | 90 | 120 | 150 | 140 | 120 | 100 | 100 | 100 | 140 | 100 |
| Emergency Stop Torque (Nm) | triple rated output torque | |||||||||
| Rated Input Speed (rpm) | 4000 | |||||||||
| Maximum Input Speed (rpm) | 8000 | |||||||||
| Ultra-Precision Backlash P0 (arcmin) | ≤2 | |||||||||
| Precision Backlash P1 (arcmin) | ≤4 | |||||||||
| Precision Backlash P2 (arcmin) | ≤6 | |||||||||
| Torsional Rigidity (Nm / arcmin) | 10 | |||||||||
| Allowable Radial Force (N) | 3250 | |||||||||
| Allowable Axial Force (N) | 1625 | |||||||||
| Service Life (hr) | 20,000 (10,000 for continuous operation) | |||||||||
| Efficiency(%) | ≥95% | |||||||||
| Weight (kg) | 6.4 | |||||||||
| Operating Temperature (℃) | -10℃-+90℃ | |||||||||
| Lubricating | synthetic lubricants | |||||||||
| Degree Of Protection | IP64 | |||||||||
| Installation Direction | any direction | |||||||||
| Noise Value (db(A)) | ≤65 | |||||||||
| Moment Of Inertia (kg·cm²) | 2.25 | 1.87 | ||||||||

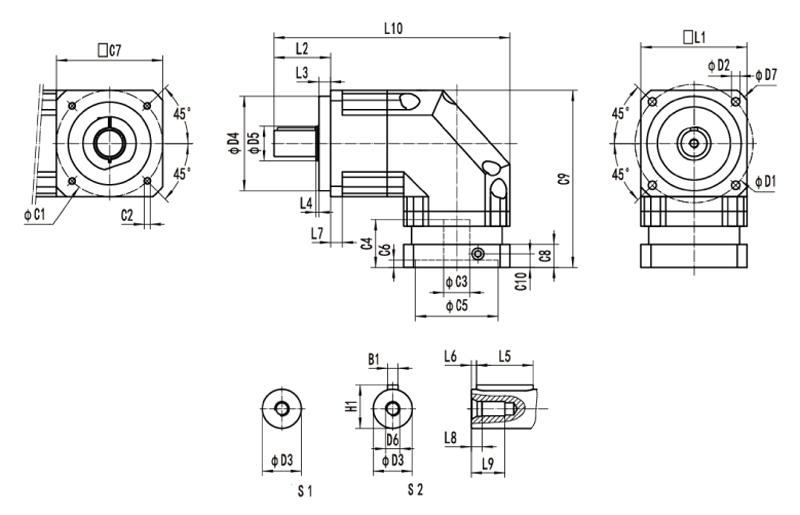

Diagram
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 |
| 100 | 7 | 22 | 80 | 30 | M8x1.25P | 116 | 90 | 48 | 10 | 2.5 | 32 | 3 | 10 | 6 |
| L9 | L10 | C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 | C9 | C10 | B1 | H1 | |
| 20 | 203 | 90 | M6x1.0P | ≤19 / ≤22 | 40 | 70 | 8 | 90 | 17 | 152.5 | 14.5 | 6 | 24.5 |
