Japanese precision hobbing machine superhard processing;
Good running precision and good stability;
High efficiency, high input speed, high output torque;
Quiet, lightweight/small;
High rigidity, high precision, long life;
Freedom to install;
Input/output shaft integrated structure;
It can be applied to printing machines, laser cutting machines, CNC machine tools, lithium batteries, spring machinery, packaging machines, warp knitting machines, injection molding machines and other products.
Specification
| Reduction Ratio(i) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 |
| Rated Output Torque T2n (Nm) | 342 | 542 | 650 | 600 | 550 | 500 | 450 | 650 | 600 | 550 | 500 | 450 | 450 |
| Emergency Stop Torque (Nm) | triple rated output torque | ||||||||||||
| Rated Input Speed (rpm) | 3000 | ||||||||||||
| Maximum Input Speed (rpm) | 6000 | ||||||||||||
| Standard Backlash (arcmin) | ≤12 | ||||||||||||
| Torsional Rigidity (Nm / arcmin) | 50 | ||||||||||||
| Allowable Radial Force (N) | 8460 | ||||||||||||
| Allowable Axial Force (N) | 4700 | ||||||||||||
| Service Life (hr) | 20,000 (10,000 for continuous operation) | ||||||||||||
| Efficiency(%) | ≥94% | ||||||||||||
| Weight (kg) | 17 | ||||||||||||
| Operating Temperature (℃) | -10℃-+90℃ | ||||||||||||
| Lubricating | synthetic lubricants | ||||||||||||
| Degree Of Protection | IP64 | ||||||||||||
| Installation Direction | any direction | ||||||||||||
| Noise Value (db(A)) | ≤65 | ||||||||||||
| Moment Of Inertia (kg·cm²) | 2.71 | 2.57 | |||||||||||

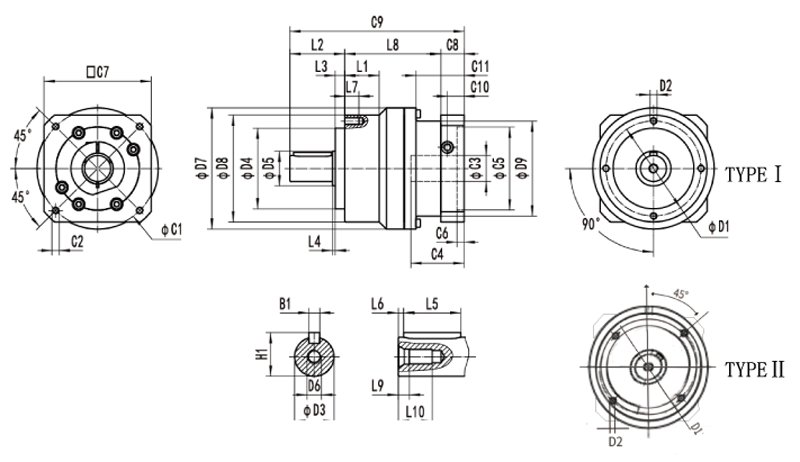

Diagram
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | D9 | B1 | H1 | L1 | L2 | L3 | L4 | L5 |
| 140 | M10x1.5P | 40 | 120 | 75 | M16x2.0P | 162 | 155 | 102 | 12 | 43 | 50 | 97 | 15 | 3 | 63 |
| L6 | L7 | L8 | L9 | L10 | C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 | C9 | C10 | C11 |
| 5 | 20 | 176 | 12 | 36 | 130 | M8x1.25P | ≤24 / ≤32 | 50 | 110 | 5 | 115 | 19.5 | 292.5 | 13 | 46 |
