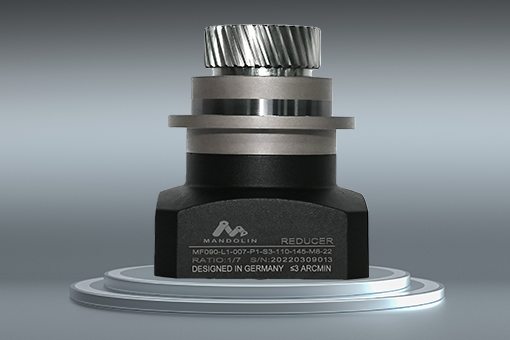

Japanese precision hobbing machine superhard processing;
Good running precision and good stability;
High efficiency, high input speed, high output torque;
Quiet, lightweight/small;
High rigidity, high precision, long life;
Freedom to install;
Input/output shaft integrated structure;
It can be applied to printing machines, laser cutting machines, CNC machine tools, lithium batteries, spring machinery, packaging machines, warp knitting machines, injection molding machines and other products.
Specification
| Reduction Ratio(i) | 4 | 5 | 7 | 10 |
| Rated Output Torque T2n (Nm) | 130 | 160 | 140 | 100 |
| Emergency Stop Torque (Nm) | triple rated output torque | |||
| Rated Input Speed (rpm) | 4000 | |||
| Maximum Input Speed (rpm) | 8000 | |||
| Ultra-Precision Backlash P0 (arcmin) | ≤1 | |||
| Precision Backlash P1 (arcmin) | ≤3 | |||
| Precision Backlash P2 (arcmin) | ≤5 | |||
| Torsional Rigidity (Nm / arcmin) | 31 | |||
| Max Bending Moment M2 (N) | 235 | |||
| Allowable Axial Force (N) | 2850 | |||
| Service Life (hr) | 30,000 (15,000 for continuous operation) | |||
| Efficiency(%) | ≥97% | |||
| Weight (kg) | 3.0 | |||
| Operating Temperature (℃) | -10℃-+90℃ | |||
| Lubricating | synthetic lubricants | |||
| Degree Of Protection | IP64 | |||
| Installation Direction | any direction | |||
| Noise Value (db(A)) | ≤60 | |||
| Moment Of Inertia (kg·cm²) | 0.51 | 0.47 | 0.45 | 0.44 |

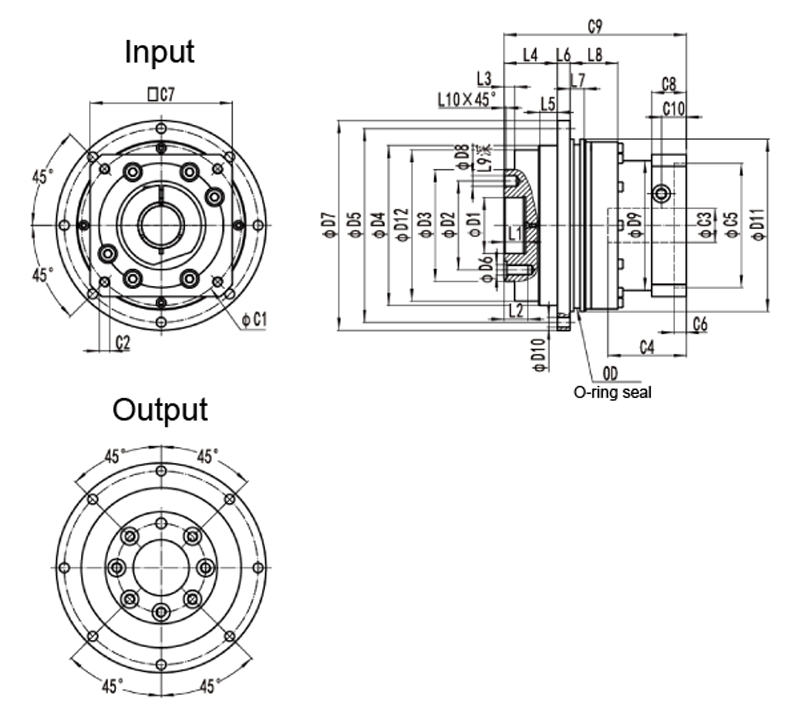

Diagram
| Item | D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | D9 | D10 | D11 |
| / | 31.5 | 50 | 63 | 90 | 109 | 7-M6x1.0P | 118 | 6 | 77 | 8x5.5 | 95 |
| Item | D12 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 |
| / | 89.2 | 12 | 13.5 | 6 | 30 | 10 | 7 | 8 | 27 | 7 | 1 |
| Item | C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 | C9 | C10 | OD |
| Type I | 90 | M6x1.0P | ≤19 / ≤22 | 47 | 70 | 6 | 90 | 19.5 | 113.5 | 16 | 90x3 |
| Type II | 145 | M8x1.25P | ≤22 / ≤24 | 61 | 110 | 15 | 90 | 41 | 127.5 | 30 | 90x3 |
