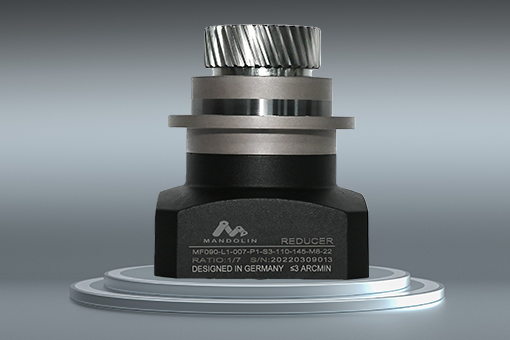

Japanese precision hobbing machine superhard processing;
Good running precision and good stability;
High efficiency, high input speed, high output torque;
Quiet, lightweight/small;
High rigidity, high precision, long life;
Freedom to install;
Input/output shaft integrated structure;
It can be applied to printing machines, laser cutting machines, CNC machine tools, lithium batteries, spring machinery, packaging machines, warp knitting machines, injection molding machines and other products.
Specification
| Reduction Ratio(i) | 25 | 35 | 40 | 50 | 70 | 100 | 140 | 200 |
| Rated Output Torque T2n (Nm) | 1200 | 1100 | 1100 | 1200 | 1100 | 900 | 1100 | 900 |
| Emergency Stop Torque (Nm) | triple rated output torque | |||||||
| Rated Input Speed (rpm) | 3000 | |||||||
| Maximum Input Speed (rpm) | 6000 | |||||||
| Ultra-Precision Backlash P0 (arcmin) | ≤4 | |||||||
| Precision Backlash P1 (arcmin) | ≤7 | |||||||
| Precision Backlash P2 (arcmin) | ≤9 | |||||||
| Torsional Rigidity (Nm / arcmin) | 440 | |||||||
| Max Bending Moment M2 (N) | 3064 | |||||||
| Allowable Axial Force (N) | 16660 | |||||||
| Service Life (hr) | 30,000 (15,000 for continuous operation) | |||||||
| Efficiency(%) | ≥92% | |||||||
| Weight (kg) | 45.4 | |||||||
| Operating Temperature (℃) | -10℃-+90℃ | |||||||
| Lubricating | synthetic lubricants | |||||||
| Degree Of Protection | IP64 | |||||||
| Installation Direction | any direction | |||||||
| Noise Value (db(A)) | ≤72 | |||||||
| Moment Of Inertia (kg·cm²) | 23.4 | 21.8 | ||||||

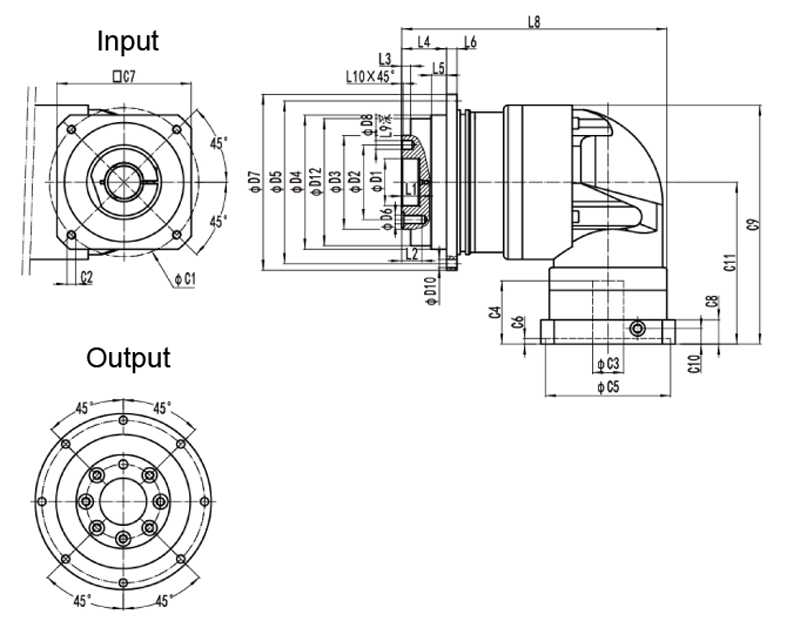

Diagram
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | D10 | D12 | |
| 80 | 125 | 160 | 200 | 233 | 11-M10x1.5P | 247 | 10 | 12x9 | 199.2 | |
| L1 | L2 | L3 | L4 | L5 | L6 | L8 | L9 | L10 | ||
| 16 | 22.5 | 8 | 50 | 15 | 12 | 333.5 | 10 | 1 | ||
| C1 | C2 | C3 | C4 | C5 | C6 | C7 | C8 | C9 | C10 | OD |
| 165 | M10x1.5P | ≤35 | 60 | 130 | 6 | 142 | 23 | 269.5 | 15 | 164.5 |
