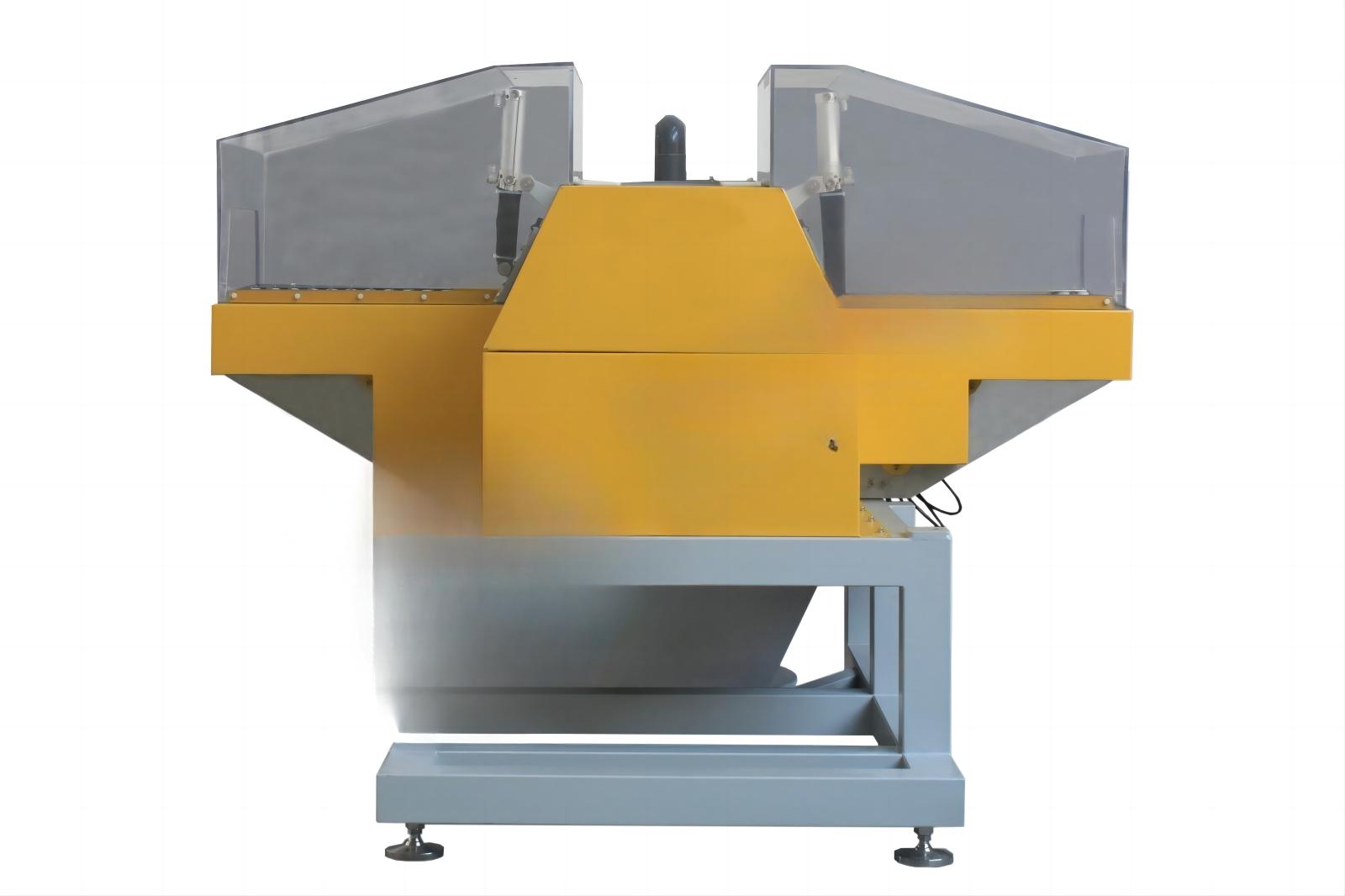

The equipment is mainly developed and designed for battery materials, and its main function is to pour out the materials in the sagger after sintering, and the discharge mechanism is sealed without dust. The pouring process is smooth and safe.
It can be matched with a bowl machine, a bowl machine, a conveyor, etc. to form an entire automated assembly line.
Specification
| Model | BJ-08 |
| Suitable container | square saggar (width 320-330mm/height 60-150mm) |
| Speed | 1-2 bowls/min |
| Power supply | three-phase 380V/220V 50-60Hz |
| Overall power | 3.3KW (including dust removal) |
| Air pressure | 0.4-0.8Mpa |
| Air consumption | 1m ³/ h |
| Operating weight | 350Kg |
| Overall volume | 1740mm front X1316mm side X1350mm height |

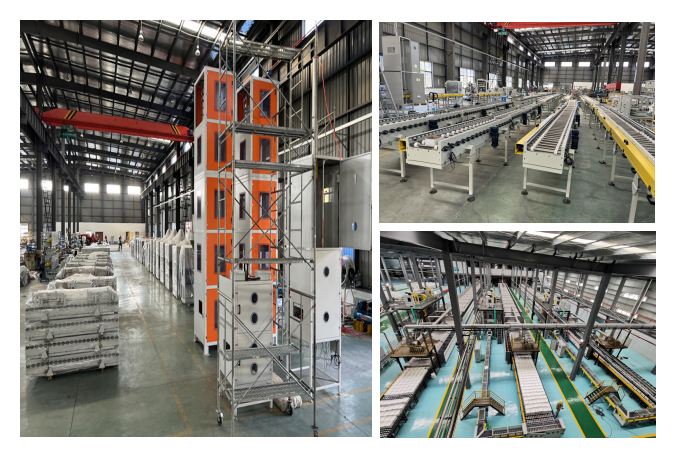

Production
