Specifications
Model No. | MT-200 | MT-300 | MT-400 | MT-600 |
| Maximum Width | 200 | 3000 | 400 | 600 |
Material Thickness | 0-1.6 | 0-3.0 | 0-3.0 | 0-3.0 |
| Reducer | 1/60 | 1/60 | 1/60 | 1/60 |
| Motor HP | 1/2 | 1/2 | 1 | 2 |
| Power Supply | AC three thrase 380V | AC three thrase 380V | AC three thrase 380V | AC three thrase 380V |
| Inner Diameter Of Material | 300-530 | 450-530 | 450-530 | 450-530 |
| Outer Diameter Of Coil | 1200 | 1200 | 1200 | 1200 |
Maximum Material Weight | 500 | 1000 | 2000 | 2000 |
Mechanical Weight Kg | 320 | 370 | 420 | 490 |

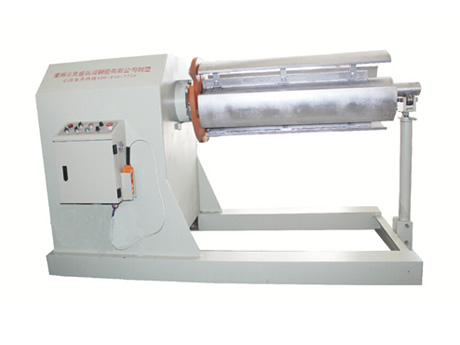

Product Description
1. It is applicable to the collection and delivery of all kinds of coiled materials, and the sheet metal can be used for almost non talented materials.
2. Motor power can be added to match the feeding device.
3. The tightness of the brake device can be adjusted, and the main shaft is of reinforced type to make the material roll rotate more smoothly and increase its load.
4. It is very effective to cooperate with the automatic production of indispensable parts of the punch, that is, to save manpower, material resources, reduce costs.
5. It adopts Japanese electromagnetic contact system and electronic parts, with fewer failures and long service life.
