Specifications
| Model | BAL-300A | BAL-300B | BAL-400A | BAL-400B | BAL-500A | BAL-500B | BAL-600A | BAL-600B | BAL-700B |
| Maximum Feeding Width （mm） | 300 | 400 | 500 | 600 | 700 | ||||
| Material Thickness （mm） | 0.3-2.0 | 0.4-3.0 | 0.3-2.0 | 0.4-3.0 | 0.3-2.0 | 0.4-3.0 | 0.3-2.0 | 0.4-3.0 | 0.4-3.0 |
| Maximum Feeding Weight (kg) | 2000 | 3000 | |||||||
| Inner Diameter Of Coil (mm) | 450-530 | ||||||||
| Outer Diameter Of Coil (mm) | 1200 | 1500 | |||||||
| Leveling Speed (m/min) | 20 | ||||||||
| Diameter Of Leveling Roller | ￠48×11 | ￠60×9 | ￠48×11 | ￠60×9 | ￠48×11 | ￠60×9 | ￠48×11 | ￠60×9 | ￠60×9 |
| Up And Down Drive | |||||||||
| Arc Control Roller | Top1 Down1 | ||||||||
| Drive Control Roller | ￠78 | ||||||||
| Driving Mode | Full drive | ||||||||
| Corrected Power | 3HP 3￠380V | 5HP 3￠380V | 7.5HP | ||||||
| Expansion Mode | Oil Pressure Expansion | ||||||||
| Material Rack Mode | subject- verb form | ||||||||
| Rack Induction Mode | Photoelectric Induction | ||||||||
| Power of Material Rack | 2HP | 3HP | |||||||
| Trolley | Standard Configuration | ||||||||
Product Description

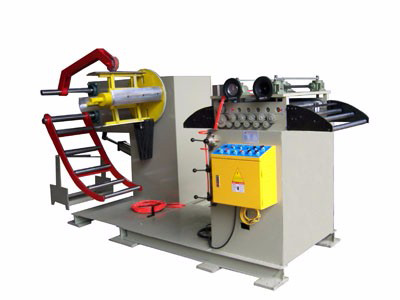

1. The rack and leveling machine are integrated, taking up less space.
2. It integrates photoelectric, hydraulic and pneumatic functions, and has a high degree of automation.
3. The upper seat can be lifted to facilitate the cleaning and maintenance of the roller.
4. The material rack is equipped with a trolley for safe and convenient loading.
