Specifications
| Model | AF-1C | AF-2C | AF-3C | AF-4C | AF-5C | AF-6C | AF-7C | AF-8C | AF-9C | AF-10C | AF-11C |
| Maximum Feeding Width | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Maximum Feeding Length | 50 | 80 | 80 | 130 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Material Thickness | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2 | 2.5 | 2.5 | 3 | 3 | 3 |
| Air Pressure | 4.5 | ||||||||||
| Maximum Feeding of S.P.M | 200 | 160 | 150 | 93 | 80 | 60 | 45 | 40 | 35 | 30 | 25 |
| Fixed Splint Friction | 10 | 27 | 40 | 55 | 78 | 78 | 107 | 107 | 119 | 119 | 119 |
| Moving Overtime Friction | 30 | 49 | 65.5 | 72.5 | 144.5 | 169 | 200 | 217 | 220 | 245 | 245 |
| Induced Tension | 14 | 16.5 | 19.5 | 25.5 | 41 | 41 | 67 | 74 | 77 | 85 | 85 |
| Air Consumption | 26.5 | 38.5 | 47 | 58.5 | 109.5 | 108.5 | 152 | 162.5 | 174.2 | 182.5 | 170.5 |
| Weight (including tools) | 8.8 | 9.6 | 12.8 | 19.6 | 38.4 | 52.4 | 80 | 95 | 156 | 178 | 200 |

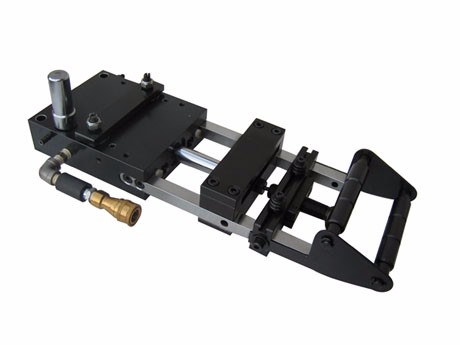

Product Description
1. Feeding length (width): 0-450mm, feeding speed: 0.1-3.2mm
2. Materials available: metal, paper tape, plastic.
3. Available material shapes: round, triangular, protuberant.
4. Special accessories: attached buffer above AC-5C.
Type E solenoid valve:
It is suitable for the case that the up and down stroke of the punch is too short or the distance is too long.
R type relaxation solenoid valve E type solenoid valve:
It is suitable for use when the upper and lower strokes of the punch are too short or too long for feeding, and high-precision feeding is required, the solenoid valve can be used to loosen the fixed clamp and correct the error.
New powerful type:
1. Suitable for automatic processing of thick materials.
2. This machine adopts a new type of pneumatic buffer to eliminate the vibration of fast feeding.
3. The clamping plate adopts a multi cylinder down press slider type clamping plate.
4. Wear resistant, easy to operate, high stability, accurate feeding accuracy.
Standard type is equipped with R type relaxation solenoid valve:
When high-precision feeding is required, the solenoid valve can be used to loosen the fixed clamp plate to correct the error.
