Specifications
| Model | GO-150A | GO-200A | GO-300A | GO-400A | GO-500A | |
| Material Width | mm | 150 | 200 | 300 | 400 | 500 |
| Material Thickness | mm | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
| Inner Diameter Of Material | mm | 450-530 | 450-530 | 450-530 | 450-530 | 450-530 |
| Outer Diameter Of Material | mm | 1200 | 1200 | 1200 | 1200 | 1200 |
| Material Weight | kg | 500 | 800 | 1000 | 15000 | 2000 |
Product Description

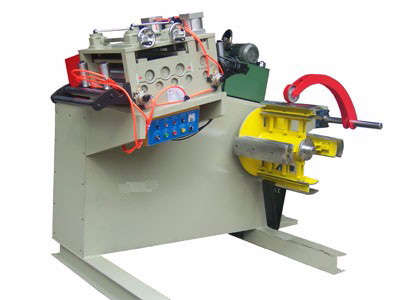

1. This model is a thick plate type material rack leveling machine, which is suitable for placing and leveling thick plate materials.
2. The material rack rectification is integrated to improve the available space of the plant.
3. The balance and fine adjustment device is used for straightening, which is suitable for processing products with high precision.
4. The roller is made of solid bearing steel and is plated with hard chromium.
5. Large air cylinder is used for pressing materials, and worm gear and worm are used for adjustment.
