Specifications
| Model | CL-150A | CL-200A | CL-300A | CL-400A |
| Maximum Width | 150 | 200 | 300 | 400 |
| Material Thickness | 0.5-3.0 | 0.5-3.0 | 0.5-3.0 | 0.5-3.0 |
| Reducer | 1:30 | 1:3 | 1:30 | 1:30 |
| Motor | 1 | 1 | 2 | 2 |
| Number Of Feeding Roller | 4 | 4 | 4 | 4 |
| Number Of Straightening Roller | 7 | 7 | 7 | 7 |
| Outer Diameter Of Coil | Φ1000 | Φ1000 | Φ1000 | Φ1000 |
| Maximum Material Weight | 600 | 600 | 600 | 600 |
| Mechanical Weight | 460 | 510 | 560 | 600 |
| Power | AC Three Phrase | |||
| Mechanical weight | 1700*560*1380mm | 1700*620*1380mm | 1700*720*1380mm | 1700*820*1380mm |

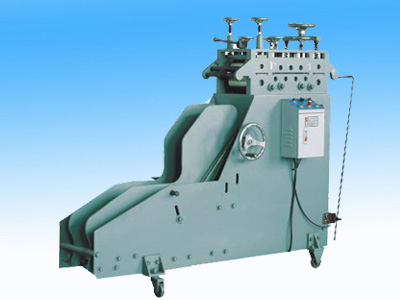

Product Description
● The material rack is integrated with the lower straightening machine, which does not take up space. Simple operation, convenient loading and unloading.
● It can be used with frequency converter.
● Chain drive.
● The roller is chrome plated with strong durability.
Scope of use:
● Various sheet metal rolls are leveled, which is suitable for the continuous production of stamping parts in hardware factories and electronic parts factories. The material thickness is 0.5-3.0mm
