Specifications
| Model | NCSF5-400A | NCSF5-500A | NCSF5-600A | NCSF5-800A | NCSF5-1000A |
| Material Thickness | 0.3～3.2mm | ||||
| Material Width | 70～400mm | 70～500mm | 70～600mm | 70～800mm | 70～1000mm |
| Feeding Roller | ￠140 mm /2 Roll | ||||
| Straighthening Roller | ￠50 mm/9 Roll/Top 5/Down 4 | ||||
| Discharge Speed | 18m/min | ||||
| Coil Weight | 3000kg | 3000kg | 5000kg | 5000kg | 5000kg |
| Inner Diameter Of Coil | ￠510mm | ||||
| Outer Diameter Of Coil | ￠1200mm | ||||
| Feeding Power | 3.5kw | 3.5kw | 5kw | 5kw | 7.5kw |
| Rack Power | 2.2kw | 2.2kw | 3.75kw | 3.75kw | 3.75kw |
| Coil Expansion | Oil Pressure/Manual | ||||
| Coil Induction | Photoelectric Frequency Conversion | ||||
| Trolley Lifting | 300 mm | ||||
| Air Pressure | 5kg/cm2 | ||||
| Feeding Height | 950～1100mm | 950～1100mm | 950～1100mm | 1050～1200mm | 1050～1200mm |
| Mechanical Dimension | 3800×2150 | 3800×2250 | 3800×2350 | 3800×2550 | 3800×2950 |
| ×1800mm | ×1800mm | ×1800mm | ×1800mm | ×1800mm | |
| Mechanical Weight | 4200kg | 4600kg | 5300kg | 5900kg | 6500kg |

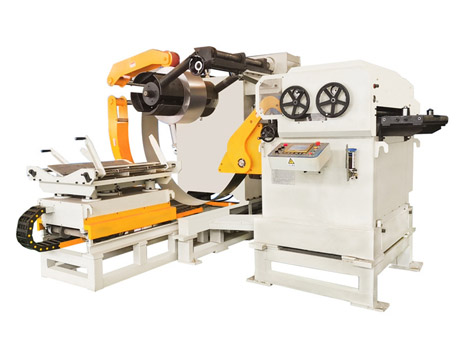

Product Description
1. The machine is applicable to various metal coils with thickness of 0.3mm ～ 3.2mm and width of 70mm ～ 1500mm;
2. Pneumatic pressing device is adopted to prevent the looseness of coiled materials, and the supporting guide rail device is equipped;
3. The automatic lifting system of the worm gear can easily adjust the discharge height to fully meet the different mold line heights, ensuring more smooth feeding;
4. The retaining wheel at the inlet and outlet is separately adjusted by double screw rods and two hand wheels, which can better adjust the material position and align with the centerline of the mold;
5. The hydraulic loading trolley can be selected to save manpower and facilitate loading;
